pd085

PD 085

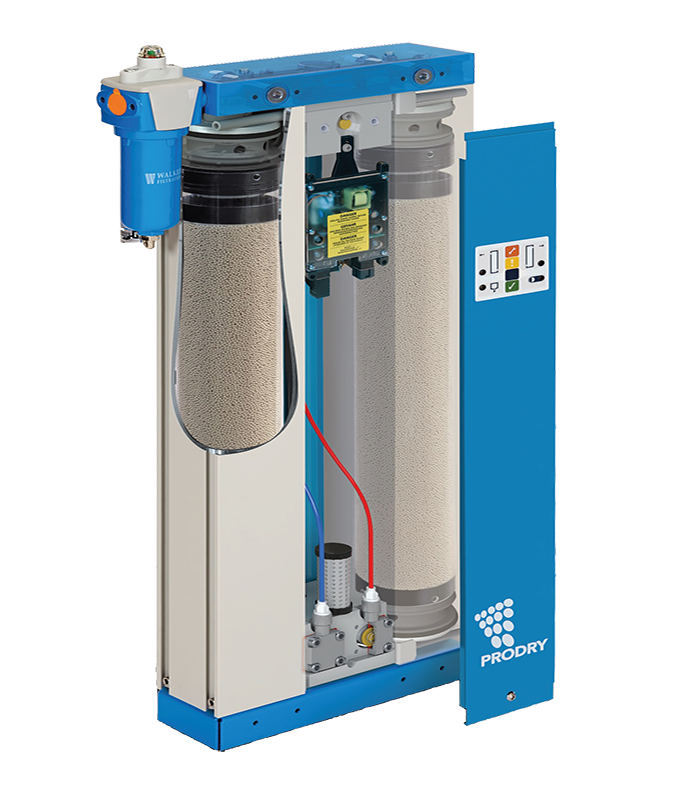

Air Power Desiccant Dryer

Pipe Size: 1”
Inlet Flow Rate* : 144 Nm3/h
Dimension (mm) : 1052 X 520 X 164 (A X B X C)
Weight : 75 Kg
Standard/Optional Dew Point : -40OC/-70O
Min/Max Working Pressure : 4 barg/16 barg
Power Supply : 12 VDC to 24 VDC OR 100 VAC to 240 VAC
Min/Max Inlet Temp. : 1.5OC/50OC
Min Ambient Temp. : 5OC

For more information on this product range and complimentary professional advice on compressed air applications, please call the following customer care numbers or fill up the enquiry form below.
